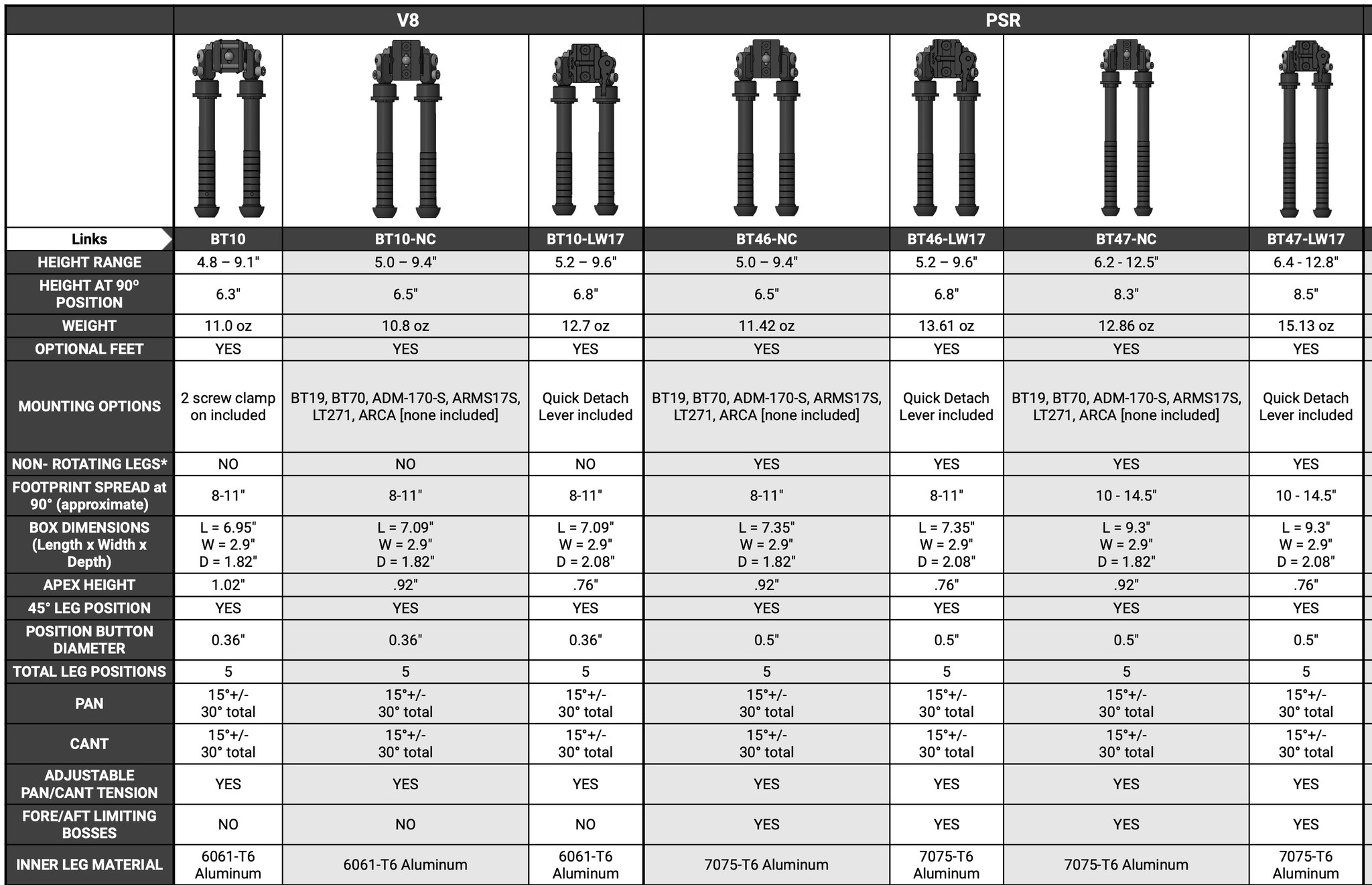

The BT10-NC V8 Atlas Bipod “No Clamp” model has a two hole pattern of 1.100” with the holes being 10/32 threads. It requires any 17S size lever style mount such as the ADM-170-S, ARMS 17S, LT271 or any ARCA dovetail mount with the same hole pattern. *See below for mount compatibility specifications.
The BT10-NC will also mount directly to our BT19 AI Spigot or BT70 M-LOK® Adapter.
Specifications:
It is comprised of 6061-T6 aluminum that is Mil-Spec Type III hard coat anodized and have heat treated stainless steel components. Includes two 10-32 x 3/8″ flathead socket screws. Available in black only.
- Height Range: 5 – 9.4″ (6.5” at 90°)
- Preloaded Pan: 30 degrees
- Preloaded Cant: 30 degrees
- Position Button 0.36″ diameter
- 5 leg positions: 0, 45, 90, 135 & 180 degrees
- Weight: 10.8 ounces approx.
- Footprint: 8–11″
The Atlas BT10-NC V8 Bipod ARCA Dovetail Mount offers precision and stability for your shooting needs. Made of high-quality 6061-T6 aluminum with Mil-Spec Type III hard coat anodized finish, this bipod is durable and reliable. It features a height range of 5 – 9.4" and includes two 10-32 x 3/8" flathead socket screws for easy installation. With a preloaded pan and cant of 30 degrees each, along with five leg positions, this bipod provides versatility and flexibility. Compatible with various lever style mounts and ARCA dovetail mounts, the Atlas BT10-NC V8 Bipod is a must-have for any shooting enthusiast.
