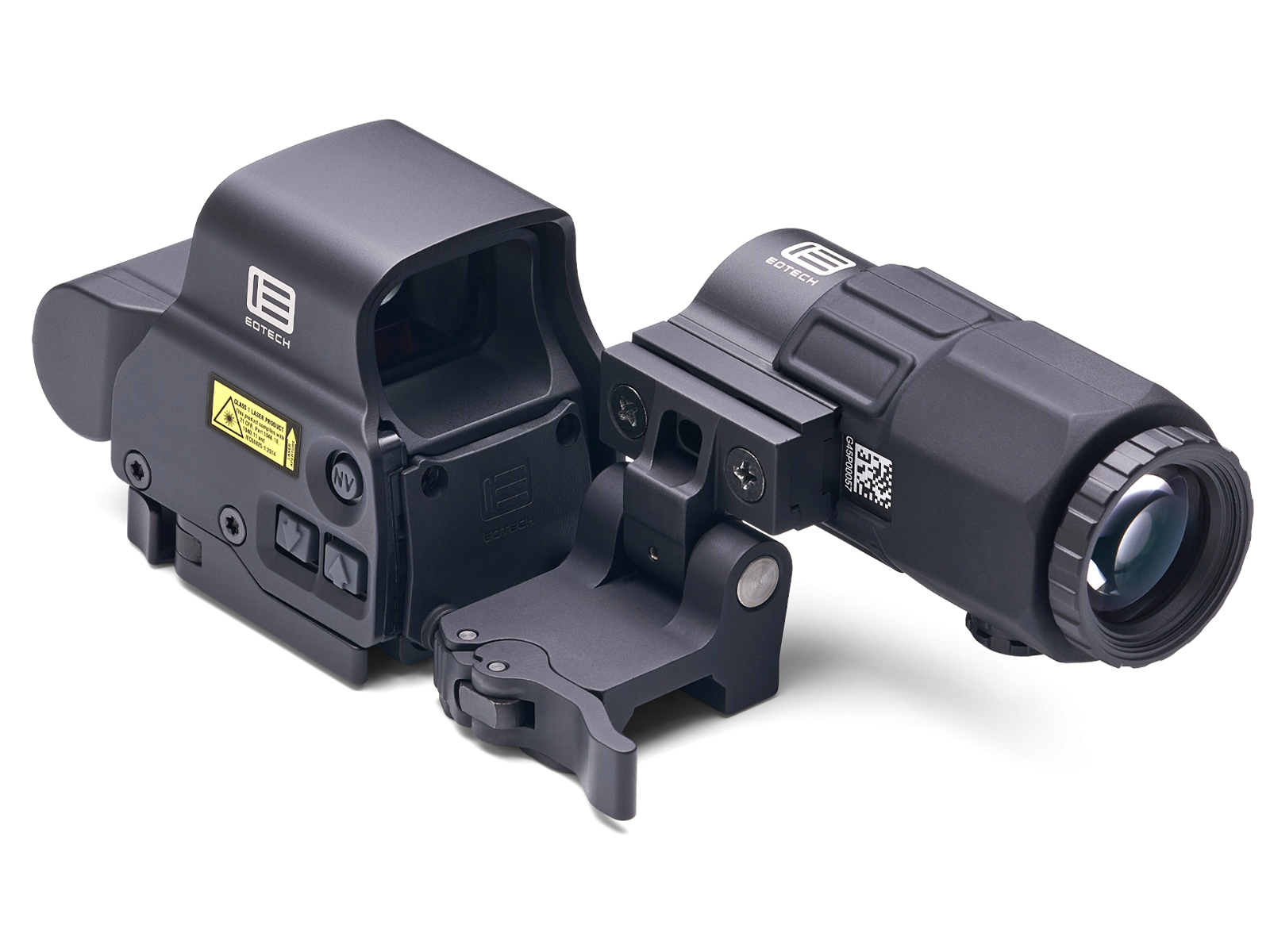

The Holographic Hybrid Sight V (HHS V), featuring a EXPS3-4 with a G45 magnifier combination is the perfect solution for Close-Quarters Combat situations as well as 600-meter targets. Instant transition is achieved through a Switch-To-Side (STS) mount that offers a simple and quick disengagement of the magnifier. This durable night vision-compatible system offers wide field optical performance for visibility in extreme low-light conditions.
* Aiming dots on the 4-Dot reticle may not be distinguishable without magnification.
EOTECH’s unique reticle patterns are a critical to delivering fast target acquisition and MOA accuracy at any range. EOTECH reticles feature a 68 MOA ring surrounding a 1 MOA center dot allowing the shooter to quickly pick up and lock on a target.
EOTECH Four Dot Reticle
Use this ballistic reticle with 5.56 Nato/.223 cal with 62 gr M855 FMJ at roughly 2,680 fps with a 14.5" barrel. For ordering this reticle, the model codes will end in -4. Aiming dots on the 4-dot reticle may not be distinguishable without magnification.
In the Box
- HHSâ„¢ V (EXPS3-4 & G45.STS)
- Quick-Start Guide
- Warranty & Registration Card
- CR123 Battery
Features & Specifications (Non-Night Vision Compatible)
- L X W X H: 7.7" x 2.3" x 3.3" (195.6 x 58.4 x 83.8 mm)
- Weight: 24oz (680.4 g)
- Water Resistant: 33ft. (10 m) depth
- Mount: 1" Weaver or MIL-STD-1913 rail
- Windage & Elevation Adjustment: 0.5 MOA per click
- Brightness:
- 20 daylight settings
- 10 additional settings for Gen I through III+ night vision devices
- Power Source: 1 x CR123 battery
- Battery Life: 1,000 continuous hours at nominal setting 12 at room temperature
- Fixed Magnification: 5X
- Eye Relief: 2.6" (66 mm)
- Field-of-View: 4°
- Exit Pupil: 4.4 mm
- Sealing: Fog resistant internal optics
- Country of Origin
- HWS: Made in USA
- G33: Assembled in USA
