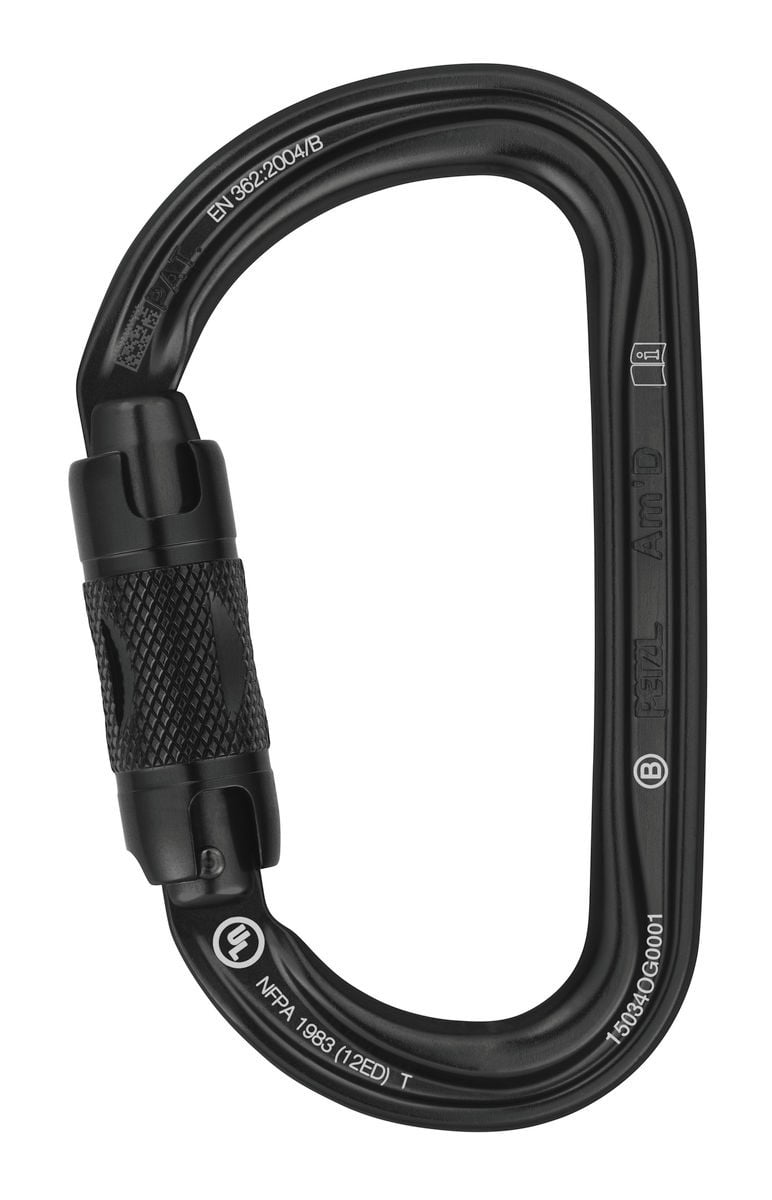

The Am’D lightweight asymmetrical carabiner is made of aluminum. It has a D shape particularly suited for connection to equipment such as descenders or positioning lanyards. Its fluid interior design and Keylock system facilitate handling. It is available in three locking systems (SCREW-LOCK manual system or TWIST-LOCK and TRIACT-LOCK automatic systems).

• Aluminum carabiner is lightweight to reduce equipment weight carried by the user
• D shape is particularly suited for connection to equipment such as descenders or positioning lanyards
• Easier handling:
• fluid interior design limits the risk of having a catch point and facilitates rotation of the carabiner
• Keylock system to avoid any involuntary snagging of the carabiner
• H cross-section:
• ensures an optimal strength/weight ratio
• protects markings from abrasion
• Available in three different locking systems:
• SCREW-LOCK: manual screw-lock with red band provides a visual warning when the carabiner is unlocked
• TWIST-LOCK: automatic locking with double-action gate opening
• TRIACT-LOCK: automatic locking with triple-action gate opening
• May be used with a CAPTIV positioning bar to favor loading of the carabiner along the major axis, to keep it integrated with the device, and to limit the risk of it flipping

Specifications

• Material(s): aluminum
• Certification(s): CE EN 362, EAC, NFPA 1983 Technical Use
• Warranty: 3 years
• Packing: 1

	M34A SLN	M34A TLN	M34A RLN
Locking System	SCREW-LOCK	TRIACT-LOCK	TWIST-LOCK
Weight	70g	75g	75g
Color	Black	Black	Black
Major Axis Strength	27kn	27kn	27kn
Minor Axis Strength	8kn	8kn	8kn
Open Gate Strength	7kn	7kn	7kn
Gate Opening	25mm	24mm	25mm
