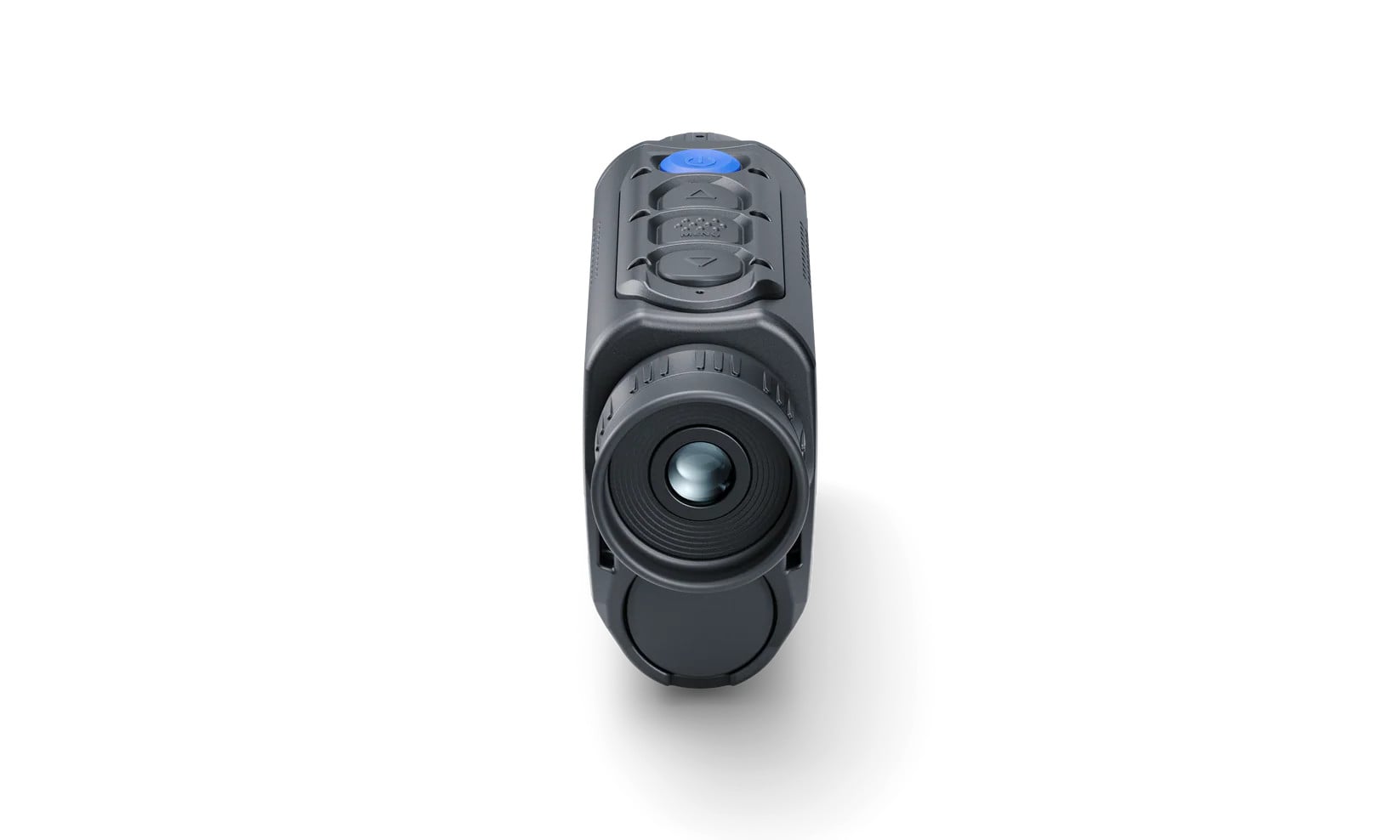

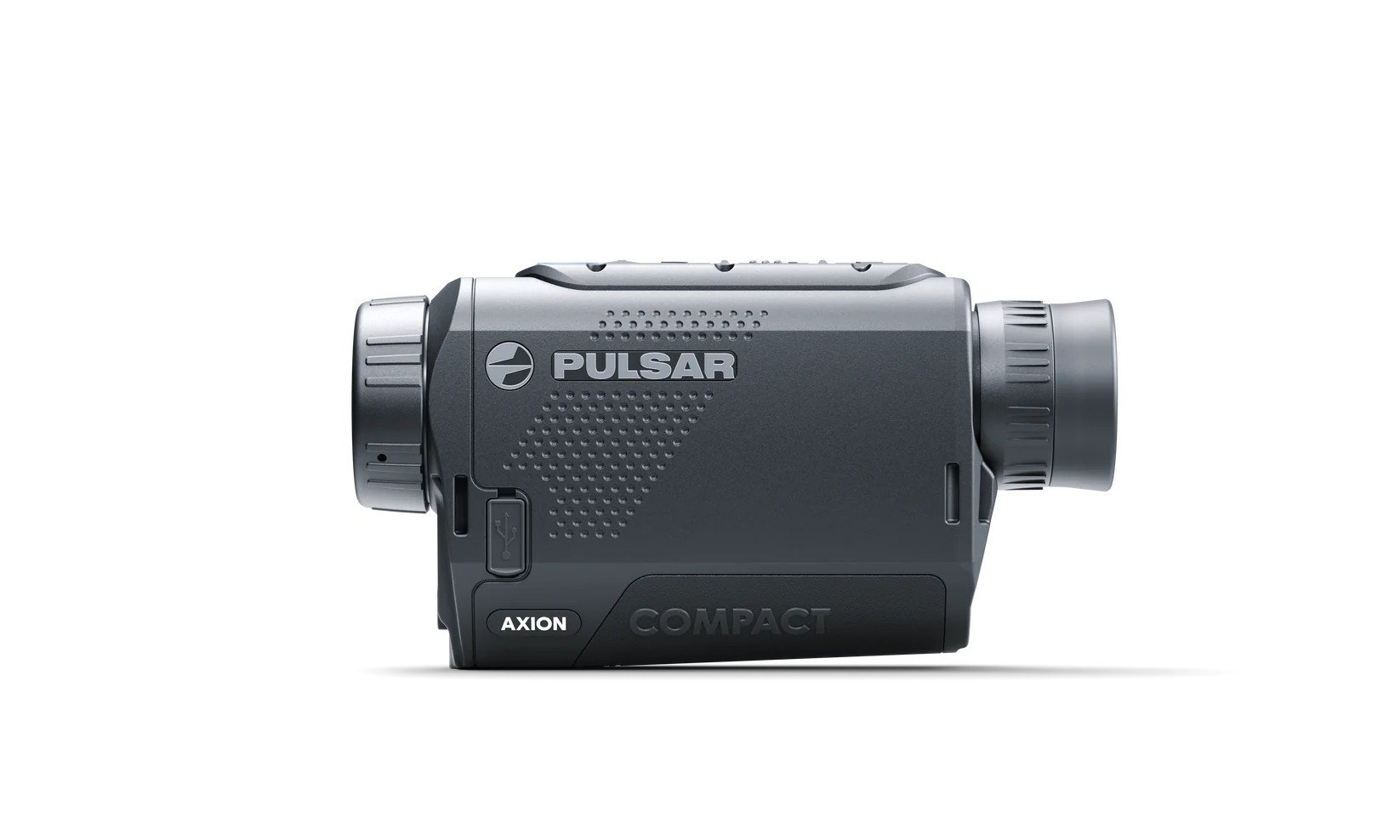

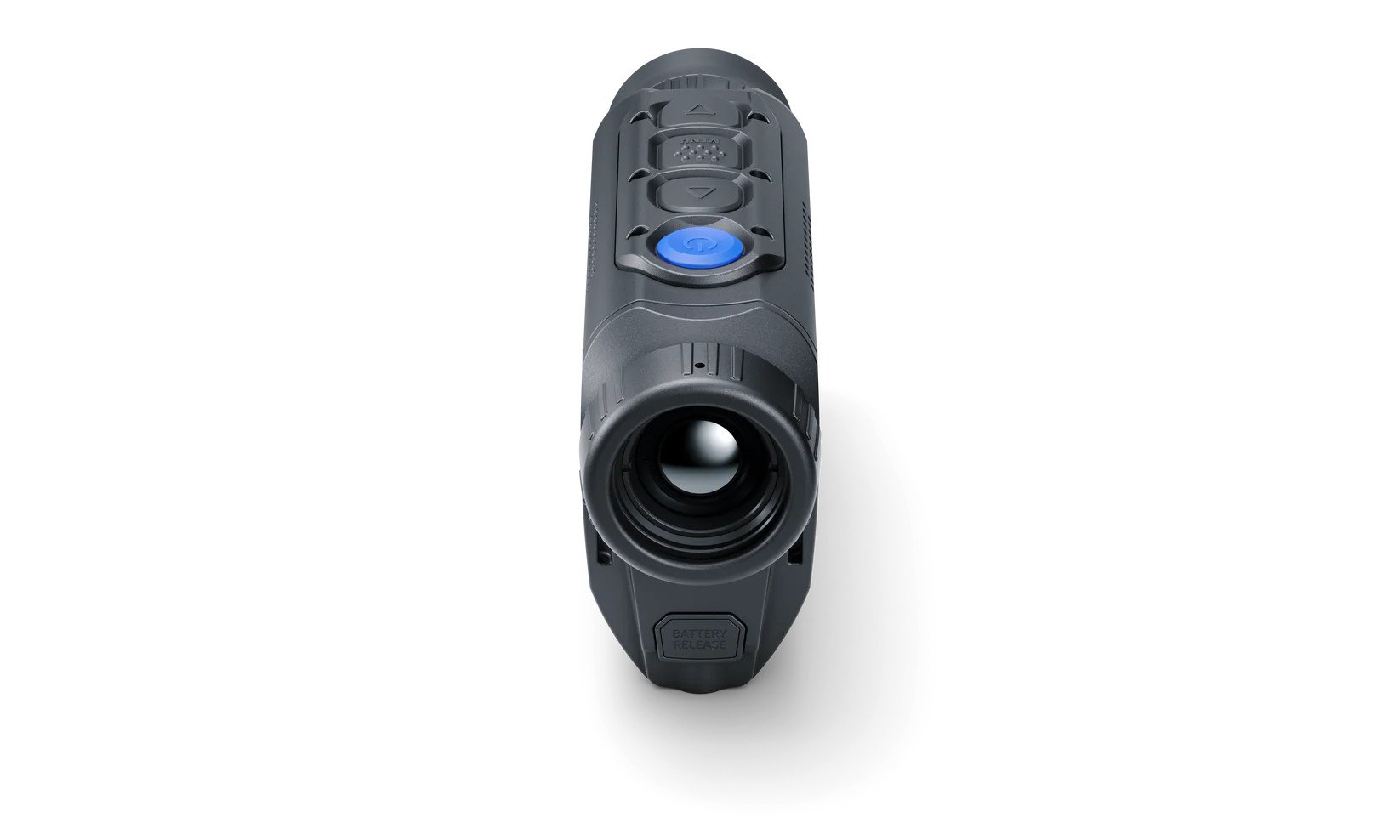

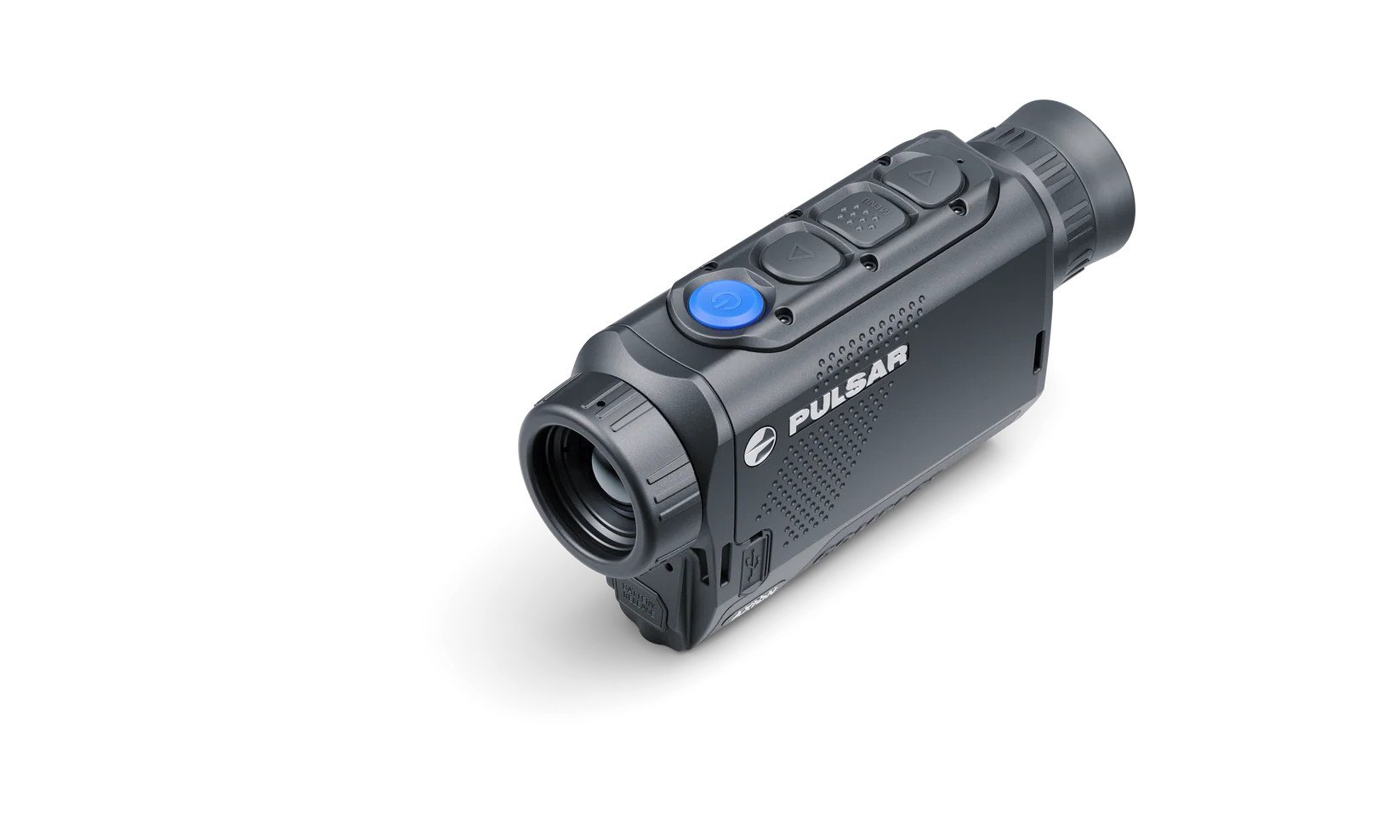

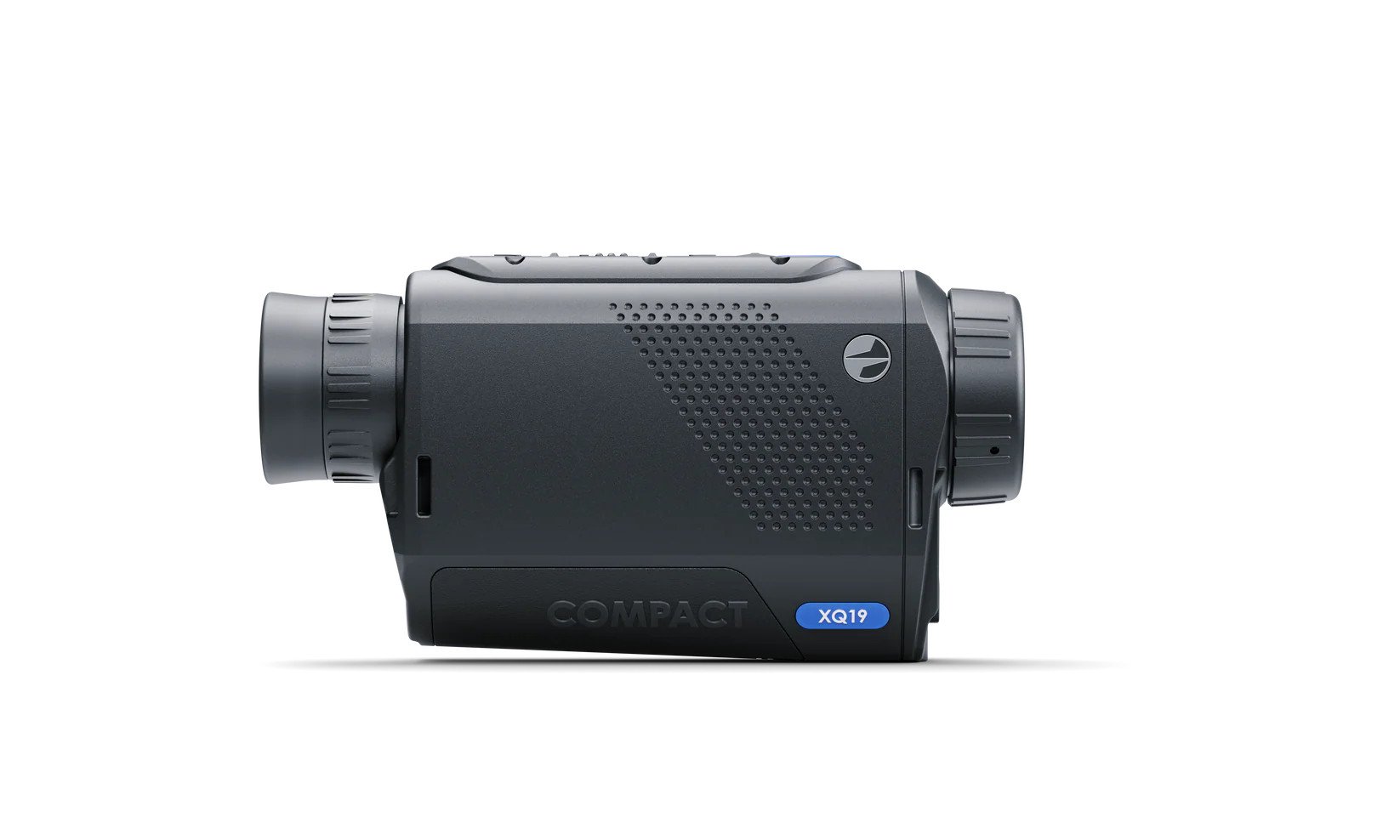

The Pulsar Axion XQ19 Compact is an entry-level thermal monocular offering reliable thermal performance and advanced features at an unbeatable price point. Designed for compactness and portability, it provides superior value for hunters.
Enter the world of thermal vision with the Pulsar Axion Compact thermal imaging monoculars. Our most compact and affordable devices are perfect for those hunters who wish to explore the possibilities of thermal vision without breaking the bank.
Fitting in one hand and light to carry, they still offer high thermal sensitivity and other premium features, including Wi-Fi connectivity and our latest image processing algorithms.
NEW: Axion XQ19 Compact – the most compact and cost-effective option that does not compromise on core thermal detection capabilities.
Features:
- European made thermal imaging sensors
- Pocket-sized dimensions and light weight
- Wide field of view for easy scanning
- Photo and video recording
- Rugged magnesium alloy housing
- Sensitivity amplification levels
- Multiple color palettes
- Stream Vision 2 app support for iOS and Android
- Frost-resistant AMOLED Display
- Long-life removable battery
- Charging with USB Type-C
- Picture-in-Picture Function
- IPX7 Waterproof rated
- User mode
- Digital zoom
- Tripod mount 1.4”
Specifications:
Main:
- Sensor: @ 17 µm 384x288
- Objective lens: F19 / 1.0
- Magnification, x: 1.5 - 6 (x4 digital zoom)
- FOV (HxV), degrees: 19.5 x 12.3
- FOV (HxV), m@100m: 34.7 x 21.5
- Diopter Adjustment, D: +4/-5
- Detection range: 750
Sensor:
- Type: uncooled
- Resolution, pixels: 384x288
- Pixel pitch, µm: 17
- Sensor NETD, mK: < 25
- System NETD, mK: < 18
- Frame rate, Hz: 50
Optics:
- Objective lens: F19 / 1.0
- Magnification, x: 1.5 - 6 (x4 digital zoom)
- FOV (HxV), degrees: 19.5 x 12.3
- FOV (HxV), m@100m: 34.7 x 21.5
- Diopter Adjustment, D: +4/-5
- Eye relief, mm: 14
Display:
- Type: AMOLED
- Resolution, pixels: 640x400
Range performance:
Video recorder:
- Video / photo resolution, pixel: 960х600
- Video / photo format: .mp4 / .jpg
- Build-in memory, GB: 64
Wi-Fi:
- Wireless protocol: Wi-Fi
- Wireless standard: IEEE 802.11 b/g/n/ac
Environmental characteristics:
- Degree of protection IP code (IEC60529): IPX7 (waterproof)
- Operating temperature range, °С: -25 – +40
Connections and compatibilities:
- Mount type: 1/4" socket
- Supported application: Stream Vision 2
Power supply:
- Output voltage, V: 3.0 – 4.2
- Battery type: APS 3 Li-ion Battery Pack
- Capacity, mAh: 3200
- Operating time on battery pack, h at t=22°С: 8
- External power supply, V: 5 (USB Type C)
Weight & size:
- Body material: Aluminum alloy
- Dimensions, mm: 134.5х38х71
- Weight, kg: 0.25 (without battery)
- SKU: 77517
