The EPIC™ Protector ballistic helmet, designed with mobile field force police officers in mind, is substantially lighter than the ACH. It provides premium comfort and comes configured with Team Wendy’s CAM-FIT™ BOA Dial retention, EPIC Air® Fit liner system, new reverse dovetail accessory rails and front cover plate to ensure riot shield alignment.
The EPIC™ ballistic helmet line for law enforcement professionals is a result of the innovative synergies between Avon Protection, Team Wendy, and Ceradyne. The series features lightweight high-performance material paired with Team Wendy® retention and liner systems for maximum comfort.
Designed to provide the ultimate in head protection against ballistic threats in addition to mitigating head trauma from blunt impacts, all EPIC™ helmets feature Ceradyne seamless ballistic shell technology. This leading-edge shell technology incorporates a proprietary Thermoplastic composites forming/molding process that is fine-tuned for Ultra-High Molecular Weight Polyethylene fiber composites. Thanks to its high strength and low-density combination, this fiber has the highest strength-to-weight ratio of any available fiber on the market.
PRODUCT FEATURES
Ceradyne Seamless Ballistic Shell TechnologyComplete no thru-hole technology​ provides increased ballistic performance
- Proprietary thermoplastic composites forming/molding process
- High strength/low-density combination fiber offers maximum strength-to-weight ratio
- Ultra-high molecular weight polyethylene fiber composites, 33% lighter than Aramid material

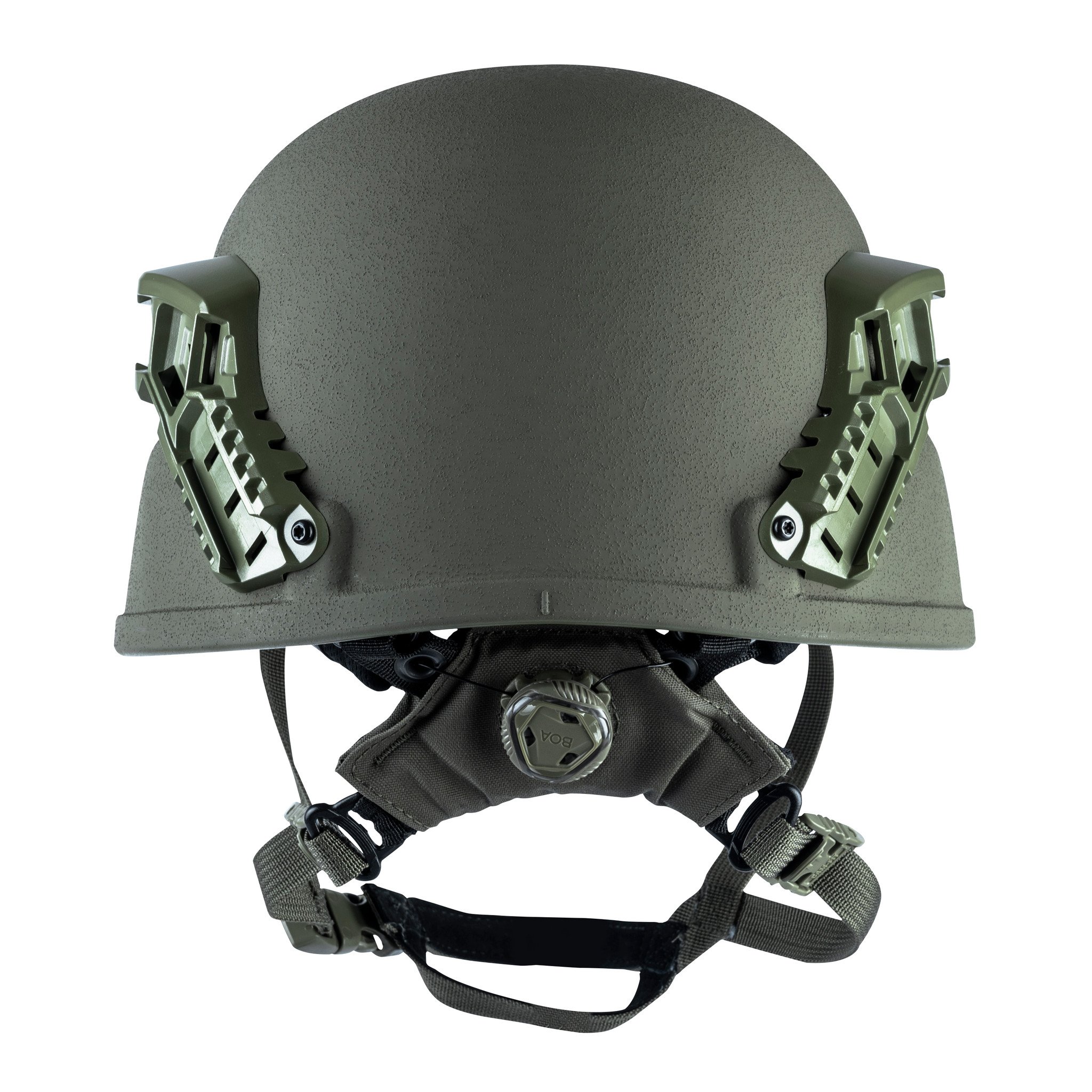

Reverse Dovetail Accessory RailsNo thru-hole attachment (No drilled holes through the ballistic shell for attachment)
- Integrated low profile reverse dove-tail mounting system
- Compatible with common helmet accessories and optional removable picatinny adapter
- Provides counterweight attachment options
- Accommodates optional shock cord system for increased stability of Night Vision Devices
No Thru-Hole CAM FIT™ Retention SystemBOA® fit system with micro-adjustable dial
- Utilizes Cam Lock sliders for one-handed adjustment and secure fit
- Asymmetric design keeps buckle tucked smoothly along jaw line
- Chin cup lining ensures maximum comfort and chafe-free wear
- Custom clip system attachment (no-thru holes)​

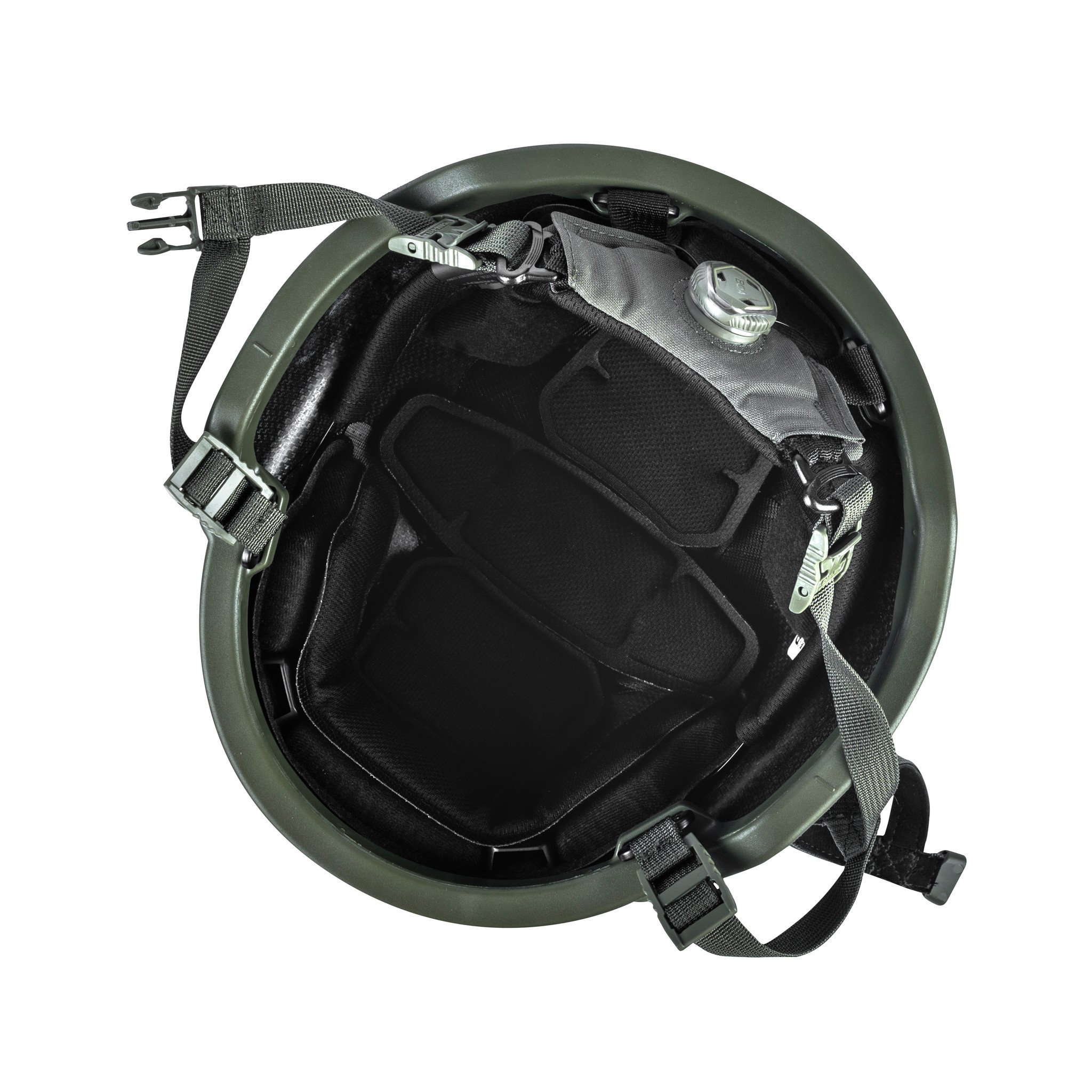

EPIC Air® Fit Liner SystemUtilizes Team Wendy’s proven Zorbium® foam technology
- Proprietary water-resistant film and loop fabric covering
- Designed to accommodate communication headset integration
- Meets ACH Gen II Blunt Impact (AR/PD 14-01)
PERFORMANCE
Ballistic Performance
NIJ IIIA (NIJ STD 0106.01/0108.01)
Fragment Performance
17gr V50 ≥ 780 m/s
Backface Deformation
9mm BFD ≤ 25.4 mm
Blunt Impact Performance
Meets ACH Gen II Blunt Impact (AR/PD 14-01) and AEP 2902 Clause 4.1.1.1 Method H
Weight
*Weights (lbs) +/- 3%
Weight: Full-Cut
*Weights (lbs) +/- 3%
| SIZE | COMPLETE SYSTEM | SHELL |
|---|
| SMALL |
2.8 lbs (1.27 kg) |
2.11 lbs (0.96 kg) |
|---|
| MEDIUM |
2.86 lbs (1.30 kg) |
2.17 lbs (0.98 kg) |
|---|
| LARGE |
3.12 lbs (1.42 kg) |
2.42 lbs (1.10 kg) |
|---|
| XL |
3.33 lbs (1.51 kg) |
2.62 lbs (1.19 kg) |
|---|
Weight: High-Cut
*Weights (lbs) +/- 3%
| SIZE | COMPLETE SYSTEM | SHELL |
|---|
| SMALL |
2.53 lbs (1.15 kg) |
1.84 lbs (0.84 kg) |
|---|
| MEDIUM |
2.59 lbs (1.17 kg) |
1.9 lbs (0.86 kg) |
|---|
| LARGE |
2.71 lbs (1.23 kg) |
2.01 lbs (0.91 kg) |
|---|
| XL |
2.97 lbs (1.35 kg) |
2.26 lbs (1.02 kg)
|
|---|
Shell weight includes edge trim & paint.
Complete system weight includes helmet shell, impact liner and retention system.
SIZING
| SIZE | HEAD CIRCUMFERENCE (IN) | HEAD CIRCUMFERENCE (CM) |
|---|
| SMALL |
20 – 21.25 |
52 – 54 |
|---|
| MEDIUM |
21.5 – 22.5 |
54 – 57 |
|---|
| LARGE |
22.5 – 23.6 |
57 – 60 |
|---|
| XL |
23.6 – 25.2 |
60 – 64
|
|---|
