Identifiers

• Designation: 5.56mm NMR
• Origin: United Kingdom/United States
• P/N: 01-3097
• NSN (NATO): TBC
• Gross Package: Cardboard Carton containing 30 Boxes of 30 rounds. 303mm (11.93in) x 184mm (7.24in) x 152mm (5.98in) (L x H x D) Gross Weight 6.4kg (14.1lb), NEQ 0.06kg (0.13lb)

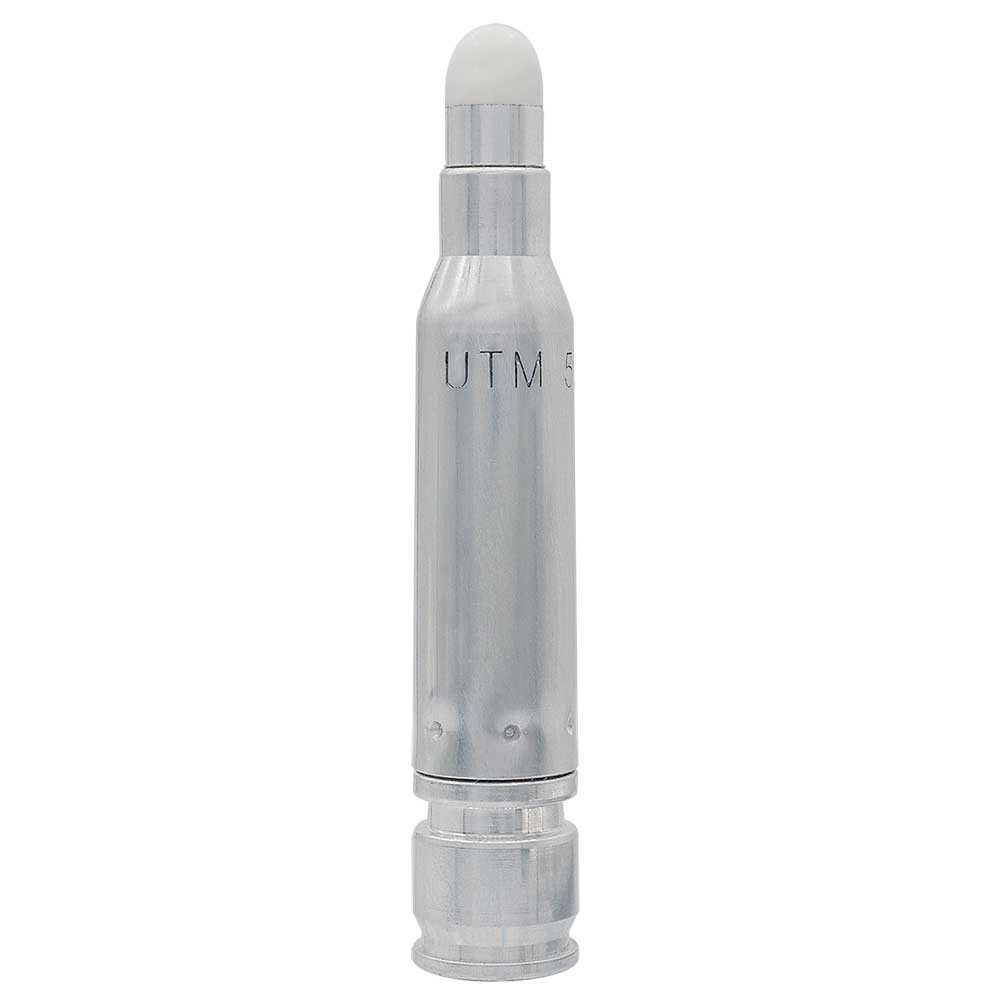

Cartridge Components

• Cartridge Case: Aluminium
• Cartridge Assembly: 6g
• Cartridge Overall Length: 53mm / 2.09 in
• Front Primer: Boxer Primer
• Rear Primer: .22 Blank / Power Load
• Projectile: See “Projectile Components” (Projectile is powered by primer only).

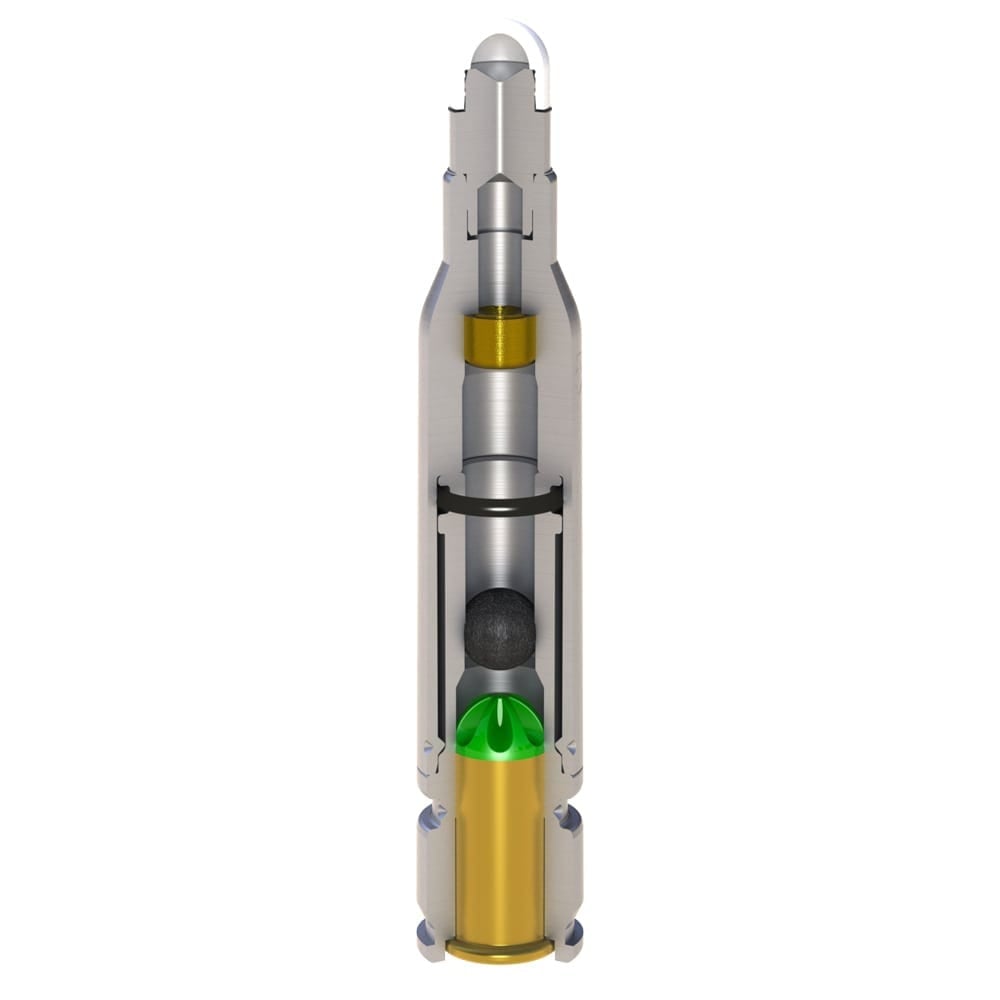

Projectile Components

• Projectile Mass: 0.43g / 6.6gr
• Projectile Assembly; A Plastic Base Cap which holds an Inertia Applicator Ball covered with a Plastic (open) Cruciform Dome.

Ballistics

• Average Muzzle Energy: Avg 2.9 Joules / 2.2ft/lbs
• Average Muzzle Velocity: Avg 114m/sec (375fps)
• Accuracy: 50mm (1.97in) at 25m/27yds (mean radius)
• Maximum Effective Range for Training: Approximately 50m / 55yds
• Optimum Effective Range for Training: Approx. 30m / 32yds & closer.
• Standoff Distance: 0.75m / 30in - No Contact Shots.
• Surface Danger Zone (SDZ): To be determined.

Operational Data

• Noise Levels: Peak 123dB (Indoors)
• Operational Temperature Range: -10°C to 42°C (14°F to 108°F)
• Compatible Weapon Types: 5.56mm/.223 Sprung Ejection SLR’s.

Purpose

• Accurate and reliable non-marking projectile for Force-on-Force or Force-on-Target training.
• Adds realism and stress to training by providing a threat of consequence with physical and visual stimulus.
• Use of Force/ROE, Tactics, Skill Building, Scenarios, Movement Drills and other Interactive Training.
• Use as a safe prelude or alternative to ‘Live-Fire’ target or CQB training.
• Accuracy and reliability allows for multiple firearms, CQB, and marksmanship applications (360° firing, movement drills, weapon transitions)

Characteristics

• Normal weapon function and recoil.
• Non-Marking projectiles.
• Realistic and consistent cyclic rates in semiautomatic and automatic weapons, which match “Live” fire.
• Surpasses “Live Fire” reliability.
• Minimal environmental impact - low emission and available in non-toxic option only

Usage Guidelines

• Whenever handling UTM Converted Weapons during FOF training, UTM recommended and approved goggles, face mask, helmet and protective gloves are mandatory - no exposed skin.
• UTM MMR converted weapons must be fired “clean and dry” in the weapon bore and barrel. NO LUBRICATION IN THE BARREL.
• UTM strongly recommends that at least two layers of loose fitting clothing or UTM PPE clothing be worn during “Force-on-Force” Training exercises using UTM NMR. One layer of clothing (i.e. Military BDU/ACU) is mandatory.
• Contact shots and shots to bare skin are prohibited. Maintain a 0.75m/30in safe separation distance during training engagements.
• Appropriate hearing and eye protection (safety glasses or goggles) is mandatory.
• Intended only for supervised training conducted in accordance with UTM safety training protocols by military, law enforcement or professional training and security organizations.
• Keep all ammunition out of reach of children.
• UTM assumes no responsibility for injuries, loss or damage resulting from misuse of this or any of its products.
• Before using any UTM product, the end user must consult, and comply with, as applicable, all laws, rules, regulations, local ordinances, health and safety regulations, and safety practices recognized as standard in the firearms industry and for related training. The end user of any UTM product is solely responsible for any and all compliance in this regard.

KEY FEATURES

• Non-Marking Round
• Velocity: 375fps (114m/sec)
• Noise Level: 123dB
• Accuracy: 1.97″ at 27yds (50mm at 25m)
• Standoff Distance: 30″ (.75m)
• Avg Muzzle Energy: 2.2ft/lbs (2.9 Joules)
• Non-Tox

Storage

Shelf Life: Minimum six years in original packaging (Following recommended storage conditions).

Recommended Storage: Dry environment, max storage temperature 40°C / 104°C

Warranty

18 months in original packaging (Following recommended storage conditions).
