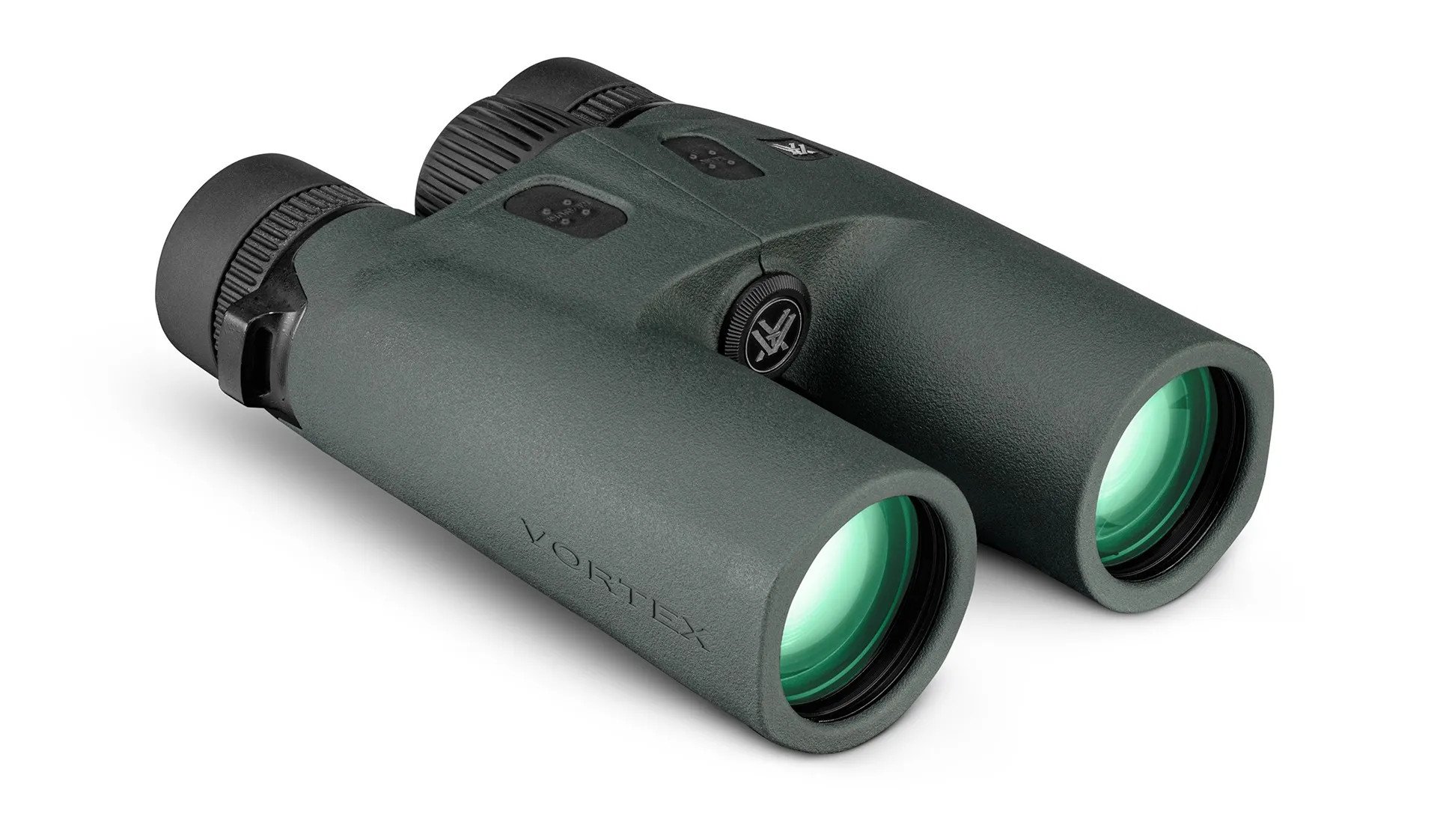

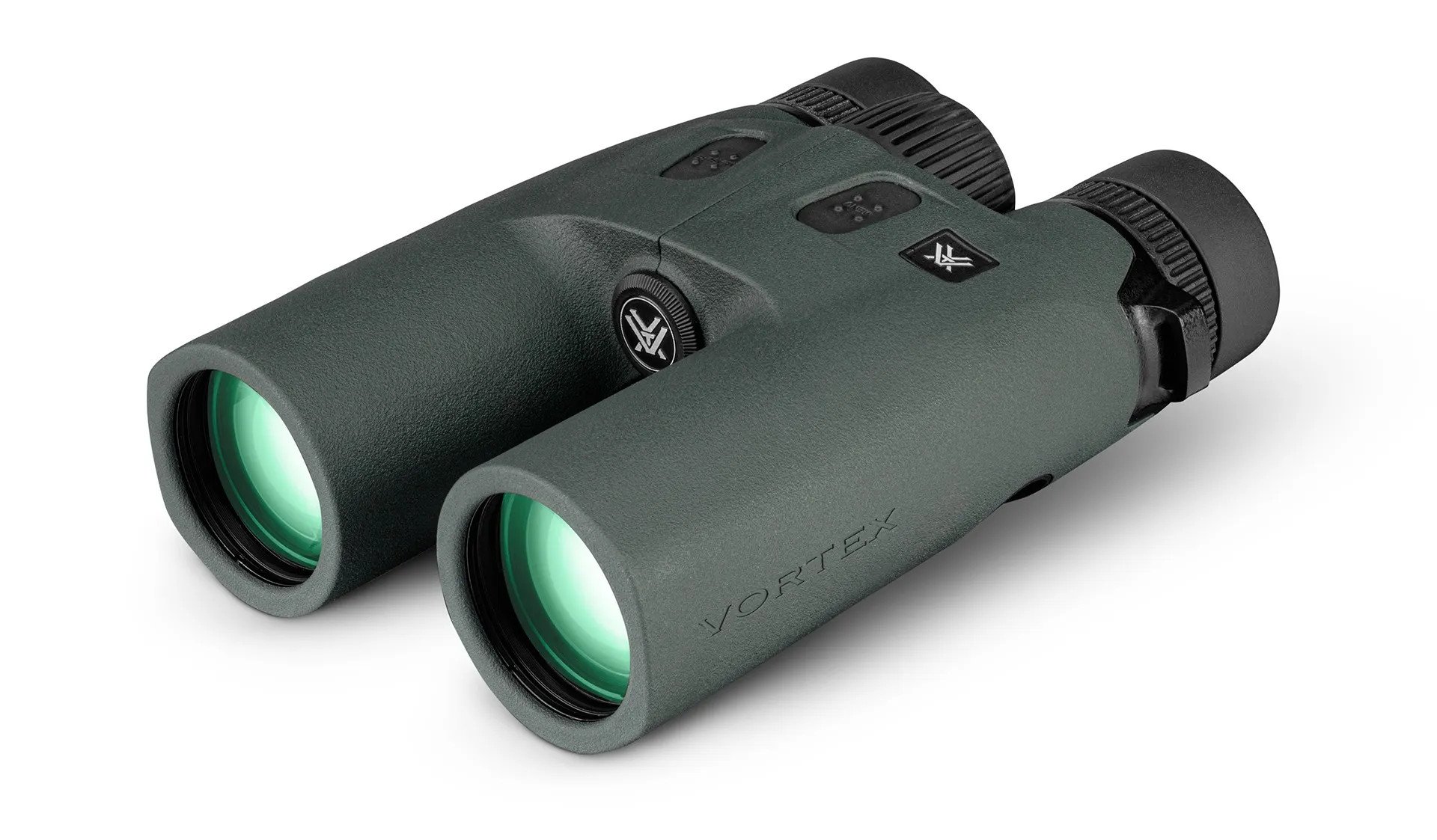

Redefine readiness with the Ranger^® HD 3000 LRF Binocular. Built for hardworking hunters, its slim design, HD clarity, and precise ranging capability combine to simplify and streamline your gear without compromising performance. In moments where speed and stealth are essential, it’s an essential tool to keep you seconds ahead.

HCD CORRECTED SHOOT-TO RANGE
The Ranger® HD 3000 uses HCD (Horizontal Component Distance) angle-compensated ranging technology to give bow and rifle shooters the critical distance data needed to make accurate shots.

Display details for Ranger HD 3000 10x42

Features:

• Ranging Modes
  • Horizontal Component Distance (HCD): Displays the slope angle compensated distance to the target.
  • Line of Sight (LOS): Displays the actual line of sight range.
  • SCAN Feature: Displays continuous distance readings while panning across a landscape.
• Target Modes
  • Normal Mode: The standard mode providing the target's range with the strongest range result. Recommended for most situations.
  • First Mode: Displays the closest distance when ranging. Ideal for ranging a smaller target in front of other larger or more reflective objects.
  • Last Mode: Displays the farthest distance when ranging. Ideal for ranging a specific target behind a group of objects like brush, trees, rocks, etc.
• HD Optical System: Optimized with select glass elements to deliver exceptional resolution, cut chromatic aberration and provide outstanding color fidelity, edge-to-edge sharpness and light transmission.
• Red OLED Display: Optimized for low light.
• Fully Multi-Coated Lenses: Anti-reflective coatings on all air-to-glass surfaces provide increased light transmission for greater clarity and low-light performance.
• Nitrogen Gas Purged: Gas purged and O-ring sealed for fogproof and waterproof performance in all conditions.
• ArmorTek®: Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt.
• Ranging Format: Range in yards or meters.
• Rubber Armor: Provides a secure, non-slip grip, and a durable external protection.
• Waterproof: Designed to withstand harsh weather conditions.
• Fogproof: Designed to withstand a wide range of temperatures.
• Shockproof: Designed to withstand the highest levels of impact.
• Tripod Adaptable: Compatible with a tripod adapter, allowing use on a tripod or car window mount.
• Manuals & Parts:
  • Product Manual (PDF)
  • Parts Diagram (PDF)

Specifications:

• Magnification: 10x
• Objective Lens Diameter: 42 mm
• Eye Relief: 17.0mm
• Angular Field of View: 6.4º
• Close Focus: 6.0'
• Interpupillary Distance: 55mm - 74mm
• Linear Field of View: 335' @ 1000 yds.
• Range Reflective (yards): Up to 3000 yds.
• Range Tree (yards): Up to 1800 yds.
• Range Deer (yards): Up to 1500 yds.
• Min Range: 6 yds.
• Height: 6.7"
• Width: 5.1"
• Weight: 32.4 oz.

Included in the Box:

• GlassPak™ Binocular Harness
• Comfort Neck Strap
• Lens Cloth
• Tethered Objective Lens Covers
• Rainguard Eyepiece Cover
• CR123 Battery
